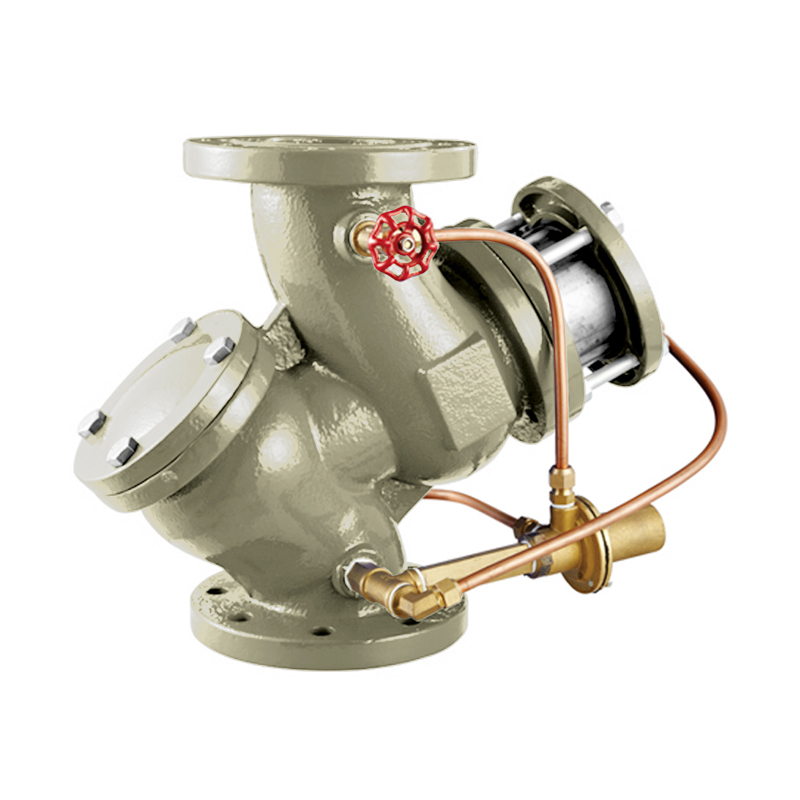

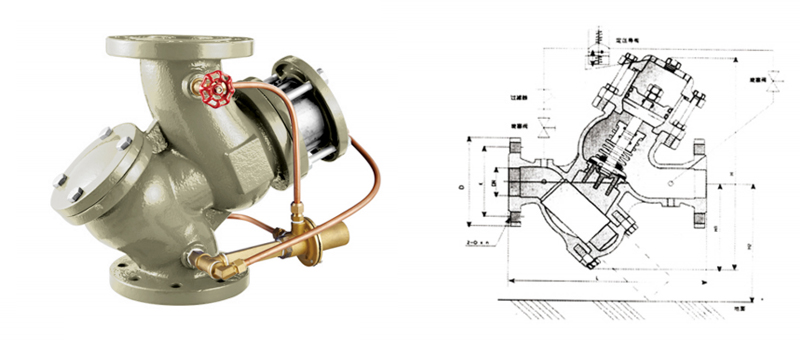

过滤活塞式可调减压阀
Filter piston type adjustable pressure reducing valve
本阀作泄压阀时可将给水管路中超过先导阀寄垒设定值的压力释放掉，并维持管路压力在一安全设定值之下，以防止管路中高压或突压毁损管线备，可同于高层大楼消防测试循环系统以及其他给水平衡系统之泄压用，本阀作持时可维持主阀上游供水压力于某一设定值以上，以保障主阀上游供水区的压力，主要用于城市低压供水区域。
压力等级：PN10(调节范围03-09MPa)
PN16(调节范围05-14MPa)
PN25(调节范围05-24MPa)
规 格：DN40~DN200
When the valve is used as a pressure relief valve, it can release the pressure in the water supply pipeline that exceeds the set value of the pilot valve, and maintain the pressure of the pipeline under a safety set value to prevent the high pressure or sudden pressure damage of the pipeline. It can be used for the pressure relief of the fire test circulation system in high-rise buildings and other water supply balance systems. When held, the valve can maintain the upstream water supply pressure of the main valve above a certain set value. To ensure the pressure of the upstream water supply area of the main valve, mainly used in urban low-pressure water supply area.
Pressure rating: PN10(adjustable range 03-09MPa)
PN16(adjustable range 05-14MPa)
PN25(adjustable range 05-24MPa)
Size: DN40~DN200
