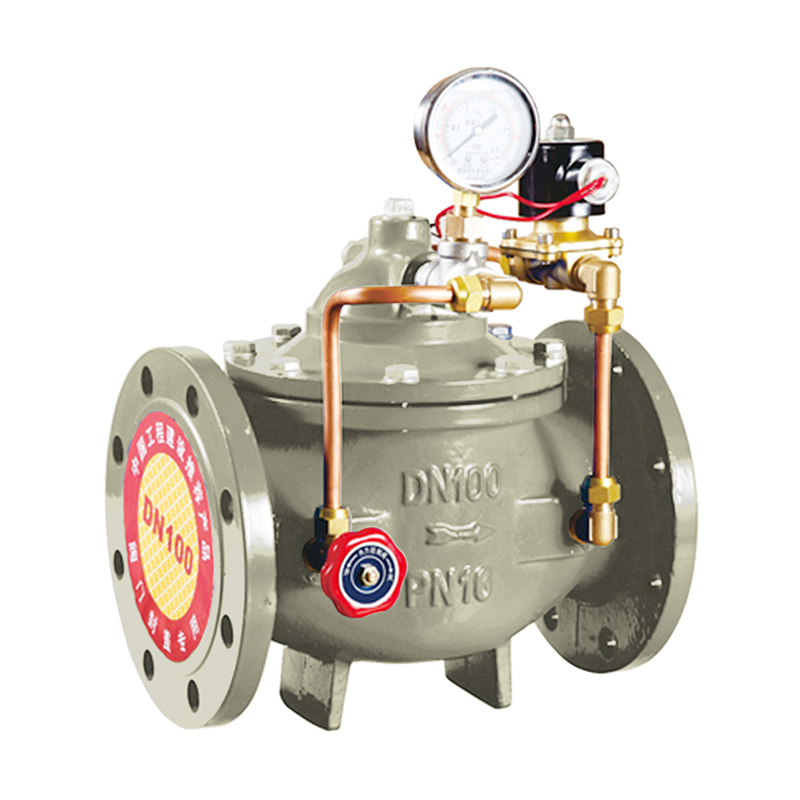

水力电动遥控浮球阀
Hydraulic electric remote control float ball valve
用途
装置于管路中，用于截断开启使用。
use
The device is installed in the pipeline for truncation and opening.
特点
可作为遥控开启或关闭之功能，同时可加装速度调控装置。可取代用来启闭闸阀或蝶阀用于大型电动操作机，维护简单。
peculiarity
It can be used as a remote control to open or close the function, and can be equipped with speed control device. It can be used to replace the gate valve or butterfly valve for large electric operators, easy maintenance.
产品技术参数
压力等级：1.0Mpa-2.5Mpa
适用介质：水
适用温度：≤80℃
口 径：DN40-DN800
设计制造：GB/T12239-1989
法兰连接：GB/T17241.6-2008
结构长度：GB/T12221-2005
压力试验：JB/T9092-1999
Product technical parameters
Pressure rating: 1.0Mpa-2.5Mpa
Suitable medium: water
Applicable temperature: ≤80℃
Mouth diameter: DN40-DN800
Design and Manufacture: GB/T12239-1989
Flange connection: GB/T17241.6-2008
Structure length: GB/T12221-2005
Pressure test: JB/T9092-1999

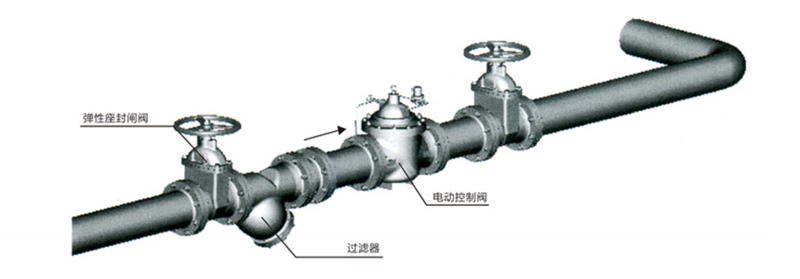

典型安装示意图
Typical installation diagram
