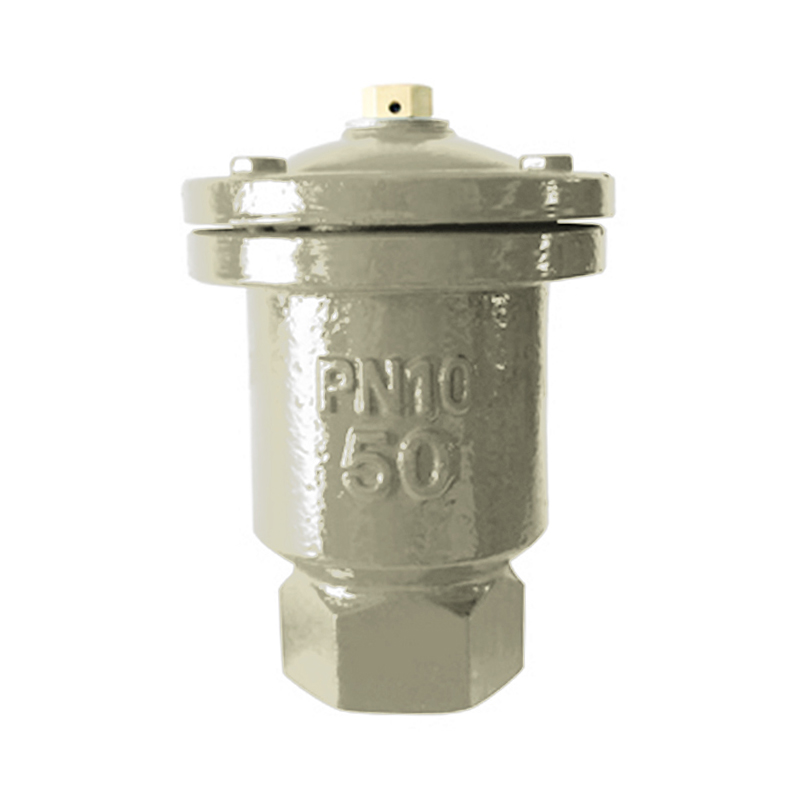

QB1自动排气阀
QB1 Automatic exhaust valve
产品概述
QB1自动排气阀，在一般情况下，水中约含2VOL%的溶解空气，在输水过程中，这些空气由水中不断释放出来，聚集在管线的高点处，形成空气袋(AIR POCKET),使输水变得困难，系统输水能力可因此下降约5-15%。此微量排气阀主要功能就是排除这2VOL%的溶解空气，并适合装置于高层建筑，厂区内配管，小型泵站用以保护或改善系统的输水功率及
节约能源。
单杆式(SIMPLE LEVER TYPE)微量排气阀，为一类似椭圆形阀体，内部所有零件包括浮球、杠杆、阀座等均为304不锈钢，内部使用标准排气孔径1/6,适合用于PN16工作压力环境，介质温度：0~80℃。
自动排气阀主要应用于暖通空调系统，往往安装在制高点或弯头等处，以排除管道中多余气体、提高管路使用效率及降低能耗，介质温度：0-80℃。
Product Overview
QB1 automatic exhaust valve: Under normal circumstances, the water contains about 2VOL% of dissolved AIR. During the water transmission process, the air is constantly released from the water and gathers at the high point of the pipeline to form an AIR POCKET, which makes water transmission difficult, and the water transmission capacity of the system can be reduced by about 5-15%. The main function of this micro-exhaust valve is to remove the 2VOL% of dissolved air, and is suitable for installation in high-rise buildings, plant piping, small pump stations to protect or improve the water transmission power of the system
Save energy.
SIMPLE LEVER TYPE micro-exhaust valve is a similar oval valve body, all the internal parts including float, lever, seat, etc., are 304 stainless steel, the internal use of standard exhaust aperture 1/6, suitable for PN16 working pressure environment, medium temperature: 0~80℃.
Automatic exhaust valves are mainly used in HVAC systems, often installed at commanding heights or elbows, etc., to eliminate excess gas in the pipeline, improve the efficiency of pipeline use and reduce energy consumption, medium temperature: 0-80℃.
主要技术参数
公称压力：1.0~16MPa
公称通径：10-25mm
适用介质：水、油等非腐蚀性液体
适用温度：0-100℃
试验标准：GB/T13927AP1598
Main technical parameters
Nominal pressure: 1.0~16MPa
Nominal diameter: 10-25mm
Applicable medium: water, oil and other non-corrosive liquids
Applicable temperature: 0-100℃
Test standard: GB/T13927AP1598

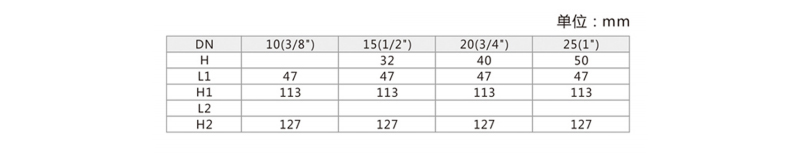

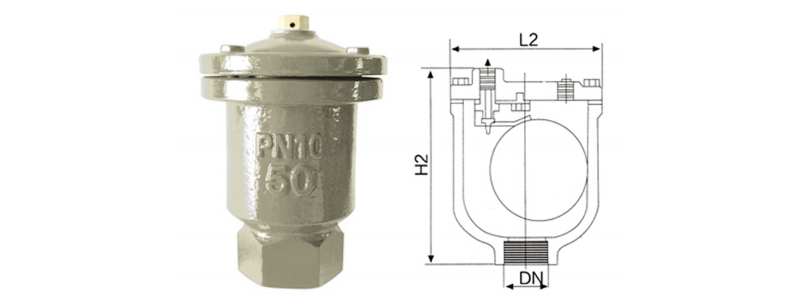

主要外形连接尺寸
Main contour connection dimensions
