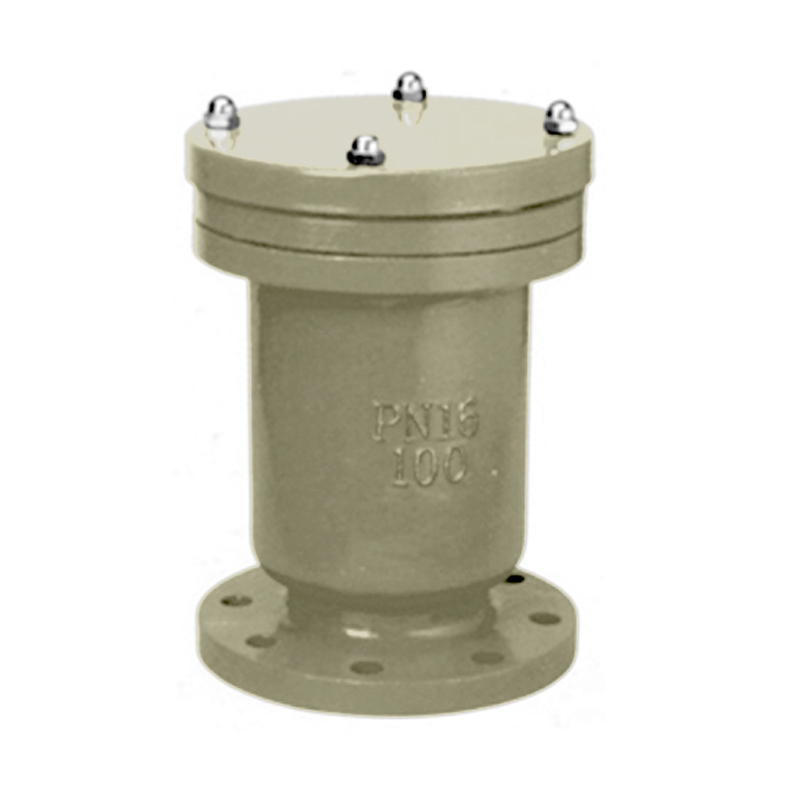

单口快速排气阀
Single port quick exhaust valve
产品概述
本阀安装于工作介质为水的管路上，用于排除出送水管中存余空气，以提高输送水的效率和保护管道不致变形破裂，是管道的必备之附件。
Product Overview
The valve is installed in the working medium for water pipeline, used to remove the air stored in the water supply pipe, to improve the efficiency of water delivery and protect the pipeline from deformation and rupture, is a necessary accessory of the pipeline.
特点
能够排除管道中的气体、减少阻力，节约能源。当管道负时，压本产品能快速自动吸气，防止管道破裂。浮球为不锈钢使用寿命长，安全可靠。
peculiarity
It can eliminate gas in the pipeline, reduce resistance, and save energy. When the pipe is negative, the pressure product can quickly and automatically inhale to prevent the pipe from breaking. The float is made of stainless steel with long service life, safety and reliability.
主要技术参数
介质：清水
温度：0-80℃
阀体材料：铸铁
浮球：不锈钢
Main technical parameters
Medium: clean water
Temperature: 0-80℃
Body material: cast iron
Float: stainless steel

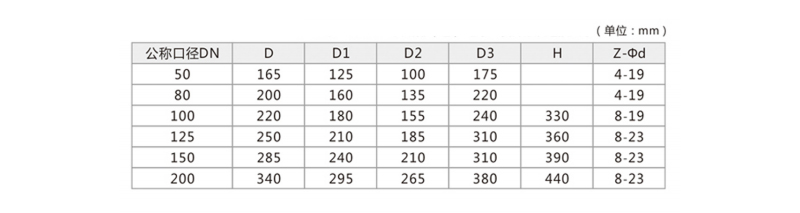

外形尺寸
Overall dimension
