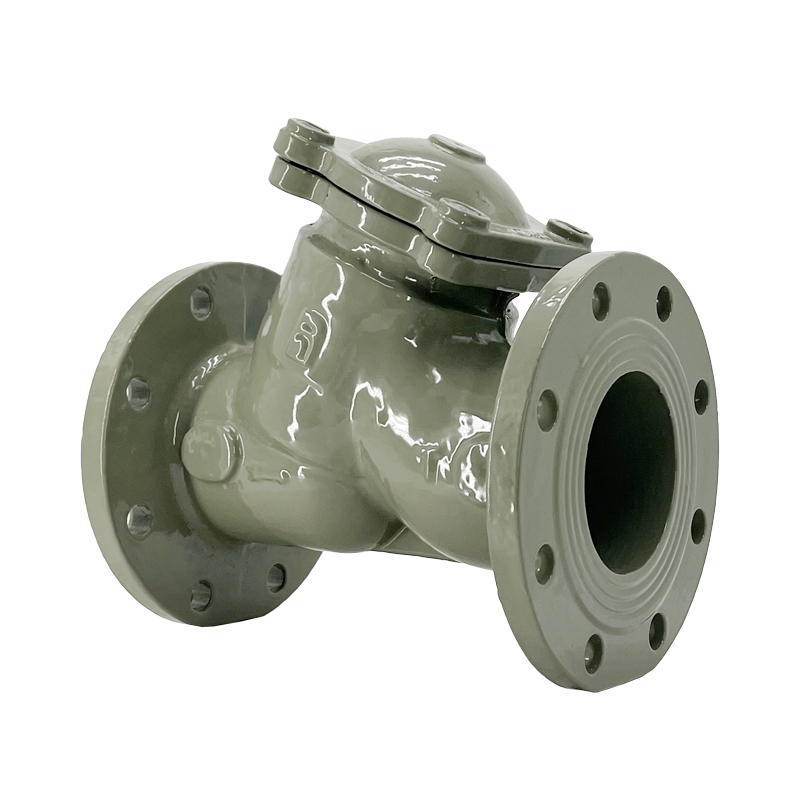

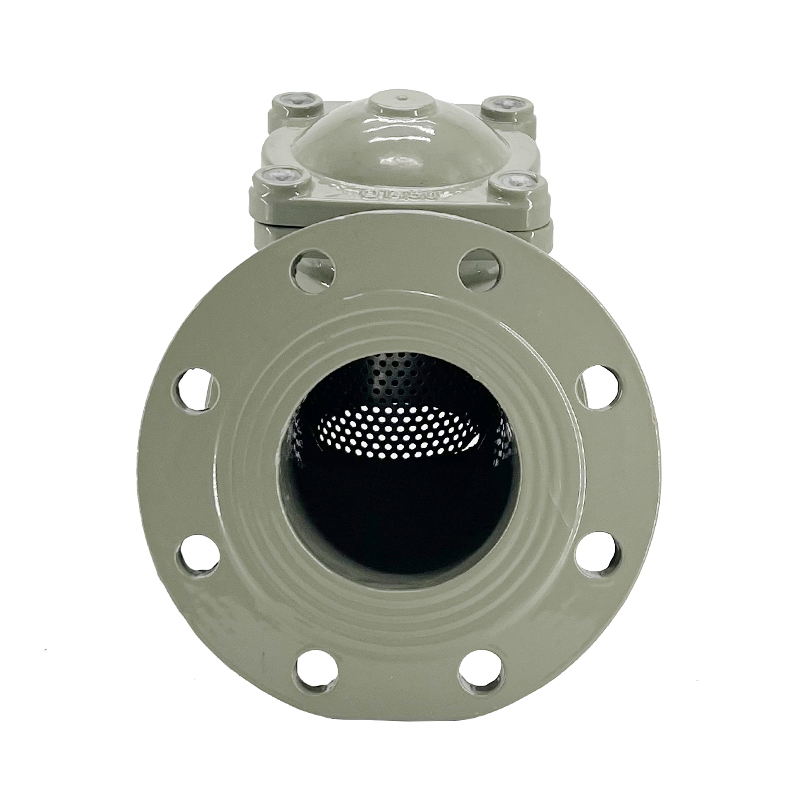

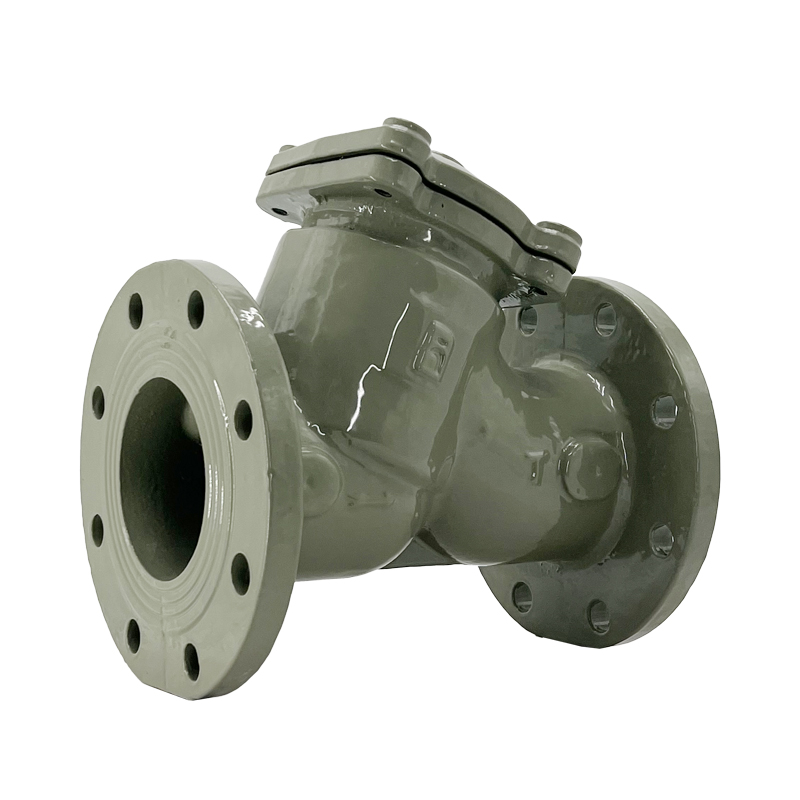

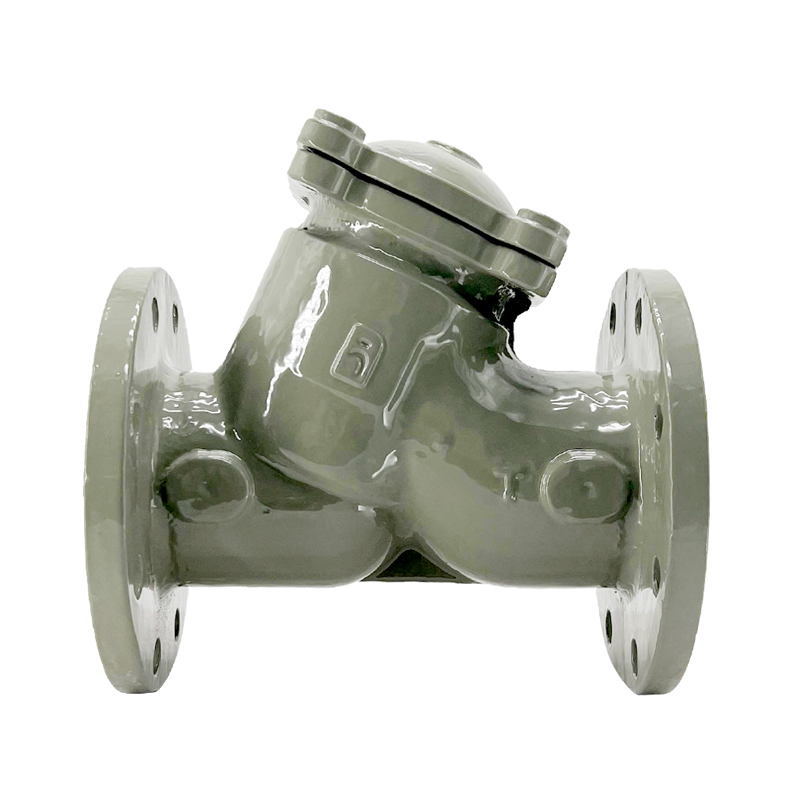

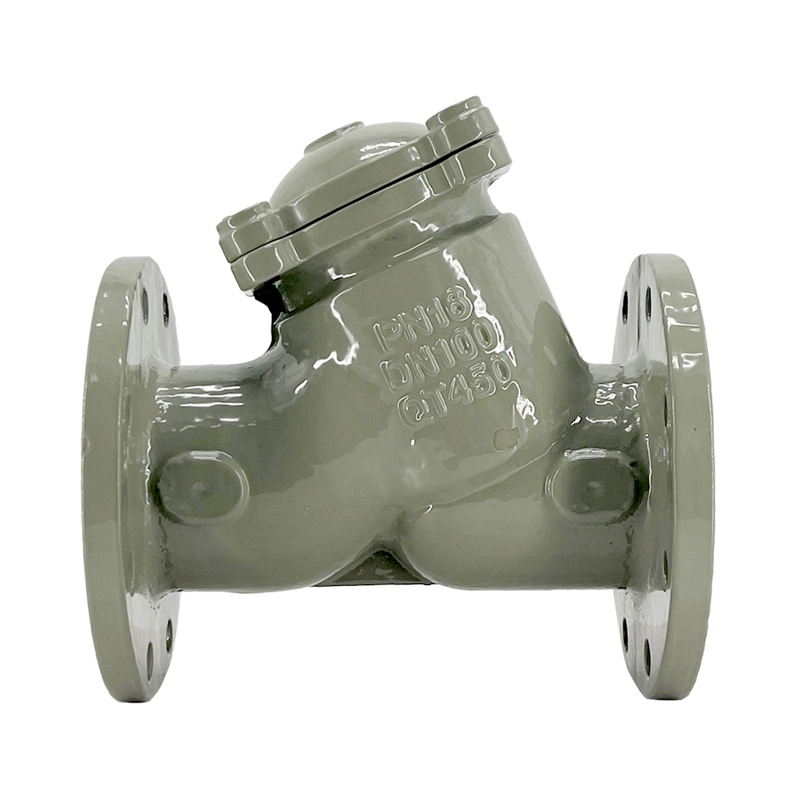

FILY型过滤器
FILY type filter
产品概述
过滤器的作用是，使用水力控制阀和其它精密的易堵塞的机械产品所必须配备的过滤设备。通常安装于易堵塞的机械产品设备的进口端，防止颗粒性杂质等进入通道，避免管道堵塞而造成阀门或其它设备工作失灵，不能正常使用。过滤网可根据需要设置目数：水18-30目上、蒸气40-100目上、油100-480目上
Product Overview
The role of the filter is to use hydraulic control valves and other sophisticated and easily blocked mechanical products must be equipped with filtration equipment. It is usually installed at the import end of mechanical products and equipment that are easy to jam, to prevent granular impurities from entering the channel, to avoid pipeline blockage and cause valves or other equipment to fail to work and cannot be used normally. Filter mesh can be set as required: water 18-30 mesh, steam 40-100 mesh, oil 100-480 mesh

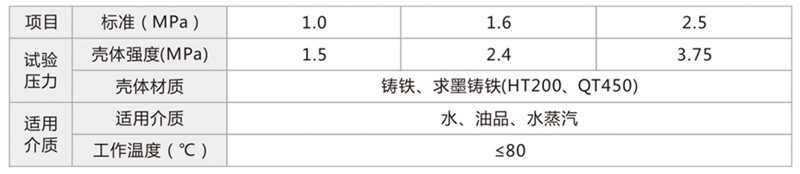

主要技术参数
Main technical parameters
主要零件材料
阀体：球墨铸铁
过滤网：不锈钢
密封垫片：丁睛橡胶
过滤网：3-4DN
Main parts material
Valve body: ductile iron
Filter: stainless steel
Sealing gasket: butadiene rubber
Filter: 3-4DN

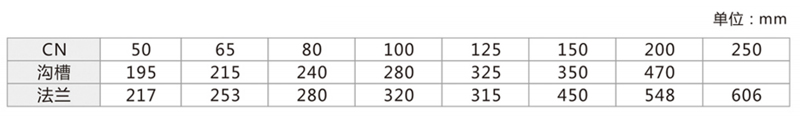

主要外形及连接尺寸
Main outline and connection dimensions
