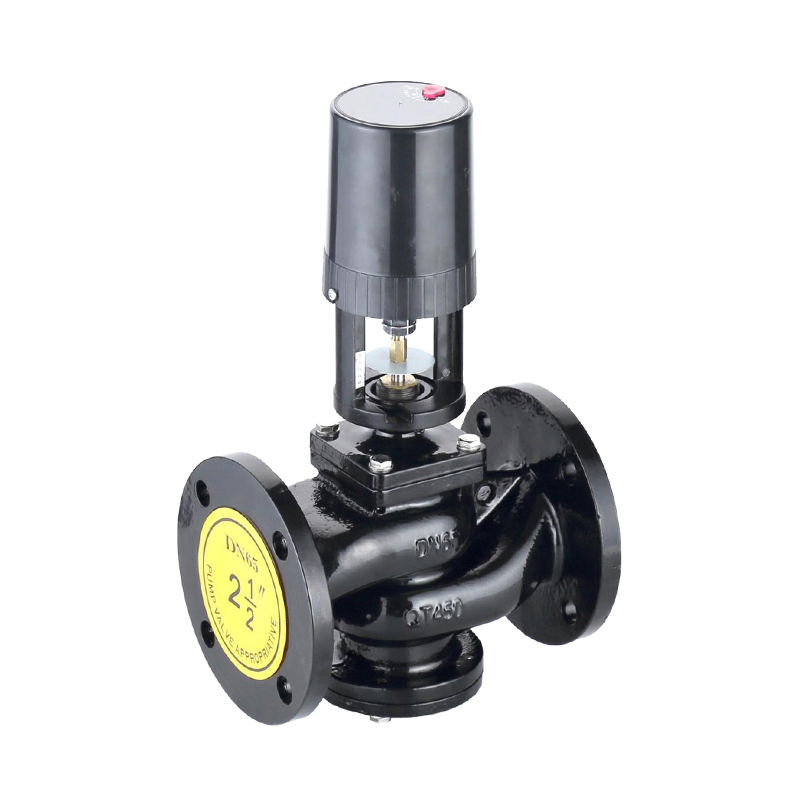

电动二通阀
ELECTRIC TWO-WAY VALVE
性能特点
● 功耗低、输出力大、噪音小。
● 选用永磁同步电机，并带有磁滞离合机构，具有可靠的自我保护功能。
● 控制方式：采用比例积分温控器浮点型控制。
● 阀体有铸铁、铸钢、不锈钢多种材质可供选择，以适合不同工作介质及温度的要求。
● 阀体有螺纹连接和法兰连接两种，安装方便，其构造符合IEC国际标准。
Performance characteristics
● Low power consumption, large output force, low noise.
● Permanent magnet synchronous motor, with hysteresis clutch mechanism, with reliable self-protection function.
● Control mode: floating-point control with proportional integral thermostat.
● The valve body has cast iron, cast steel, stainless steel to choose from a variety of materials to meet the requirements of different working media and temperature.
● The valve body has two kinds of threaded connection and flange connection, easy to install, and its structure meets IEC international standards.
用途
电动二通阀广泛应用于空调、制冷、采暖等楼宇自动控制系统，适用于冷水、热水、蒸汽以及其它非腐蚀性介质等介质的流量调节。同时也适用于化工、石油、冶金、电力、轻工等行业的生产过程自动控制系统。电动二通阀与电动执行机构配合使用，可以接受各种控制器输出的标准控制信号，控制温度、湿度、压力、流量等参数。电动二通阀具有控制精度高、安装方便、运行可靠等优点。
use
Electric two-way valve is widely used in air conditioning, refrigeration, heating and other building automatic control system, suitable for cold water, hot water, steam and other non-corrosive media flow regulation. At the same time, it is also suitable for the automatic control system of the production process in chemical, petroleum, metallurgy, electric power, light industry and other industries. The electric two-way valve is used in conjunction with the electric actuator, and can accept the standard control signals output by various controllers to control temperature, humidity, pressure, flow and other parameters. The electric two-way valve has the advantages of high control precision, easy installation and reliable operation.
技术参数

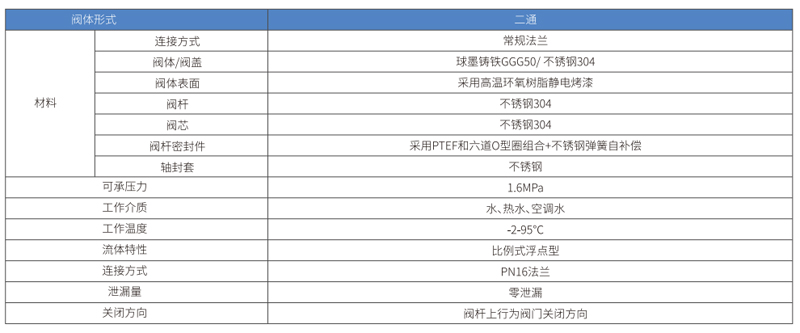

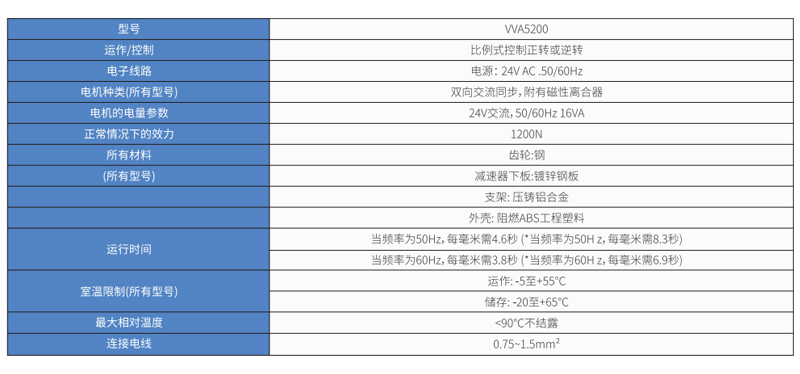

Technical parameter
压差与流量关系
Relationship between pressure difference and flow rate

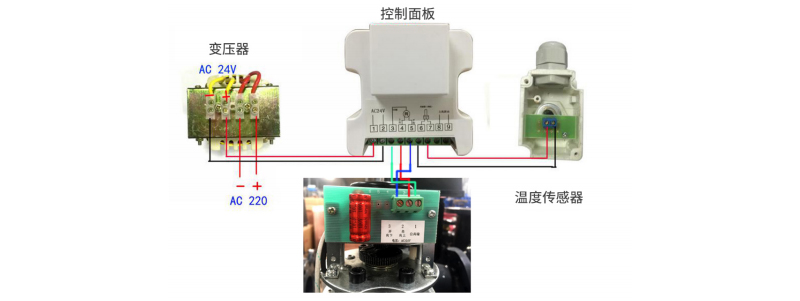

驱动器接线调试
Driver wiring debugging

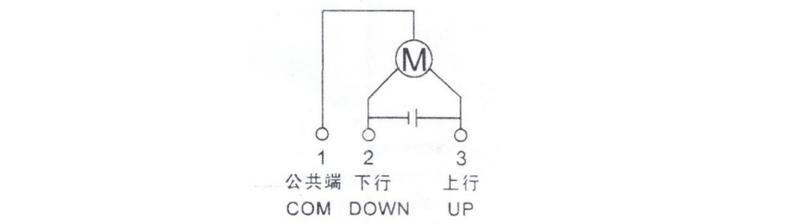

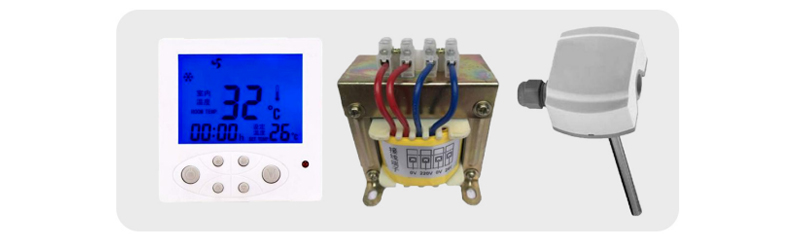

开关型 五件套 接线图示意图
Switch type five-piece wiring diagram diagram
工作原理：
由温度传感器TE-1,比例积分温度控制器TC-1和电动两通调节阀TV-1组成送风温度控制系统，安装在送风管道的TE-1把检测到的温度信
号传送至TC-1,由TC-1将TE-1的检测值与设定值不断比较，同时不断地输出信号，控制TV-1。TV-1的开度连续可调。最终使TE-1测量的环境温度保持在设定温度范围内。当盘管后的温度低干某限值时，低温保护开关TS-1切断送电机的电源，从而使新风风阀关闭，防止盘管内的水结冰，胀裂盘管。
How it works:
The air supply temperature control system is composed of temperature sensor TE-1, proportional integral temperature controller TC-1 and electric two-way regulating valve TV-1. TE-1 installed in the air supply pipeline transmits the detected temperature signal to TC-1, and TC-1 continuously compares the detected value of TE-1 with the set value, and continuously outputs the signal to control TV-1. The opening of TV-1 is continuously adjustable. Finally, the ambient temperature measured by TE-1 is kept within the set temperature range. When the temperature behind the coil is low enough to dry a certain limit, the low-temperature protection switch TS-1 cuts off the power supply to the feed motor, thus closing the fresh air valve to prevent the water inside the coil from freezing and expanding the coil.

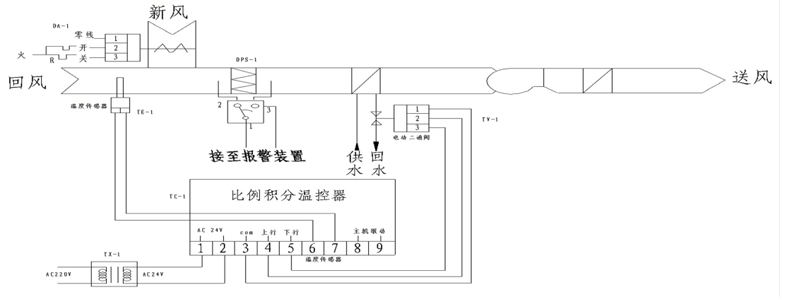

安装示意图
Installation diagram
注意事项
1、驱动器必须予以保护，防止漏水而损坏内部机件和电机。
2、 当修理驱动器时，必须把电源关闭，以防损坏机件或造成漏电引至伤亡。
3、 当接上电源时，切勿试图连接或拆卸电线。
Matters needing attention
1, the drive must be protected to prevent water leakage and damage to the internal parts and motor.
2, when repairing the drive, the power must be turned off to prevent damage to the parts or cause leakage to casualties.
3, when connected to the power supply, do not attempt to connect or remove the wire.
